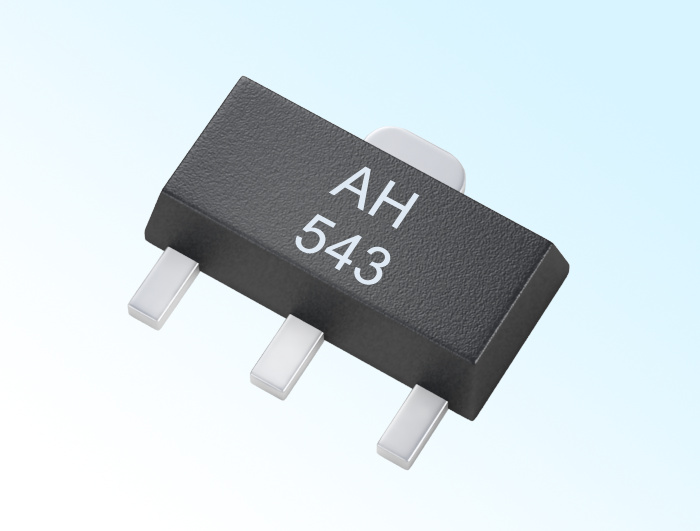

Unipolar Hall Sensor AH543
  • Unipolar Hall Sensor AH543
Unipolar Hall Sensor AH543

Unipolar Hall Sensor AH543

    ◆ Features

    Rated working voltage 4.5 V ~ 24 V, the limit voltages as low as 3.5 V;

    Operating temperature range: -40℃ ~ 150℃;

    Rated output current(sink) : 25 mA, the maximum output current(sink): 50 mA;

    Switch response time is about 1μs, the operating frequency DC ~ 100 kHz;

    Small temperature drift between operating point and release point;

    There are variety of packages and out packing options;

    No mechanical contact, no spark, switch signal stability, no shaking moment, high reliability and safety;

    Products meet the EU RoHS instruction 2011/65 / EU and REACH regulations 1907/2006 / EU requirements.


PRODUCTS DETAILS


◆ Outline

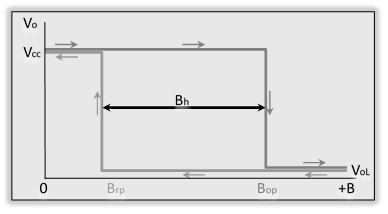

When the “S” pole of magnet faces the mark surface of the sensor and is closed to sensor(B≥Bop), the sensor outputs low level; When magnet is far away from sensor(B≤ BRP), the sensor outputs high level. When the “N” pole faces the mark surface,the sensor is no response. Stable Hyteresis((BH= |BOP- BRP|)ensure Stable sensor’s switch status. The magnet and electric transfer characteristic curve is shown as the figure:

单极型霍尔传感器AH543

◆ Block Diagram

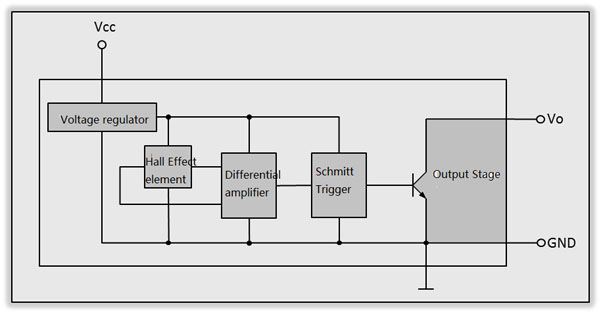

Hall sensor AH543 is one of unipolar excitation single-ended digital output Hall IC. The sensor chip has built-in reverse voltage protection, voltage regulators, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger and open collector output driver circuit unit etc. Excellent voltage regulator and temperature compensation circuit ensure the sensor stable operates over a wide voltage range and temperature range, and the reverse voltage protection circuit avoids the sensor to be damaged by reverse voltage.


◆ Limit Parameter

ParameterSymbolMin.Max.Unit
Storage Temp.Ts-55175
Supply VoltageVCC3.528V
Output Cut-off VoltageVO(off)25V
Magnetic InductionBunlimitedunlimitedmT
Output CurrentIO50mA


◆ Electrostatic Grade

Under human being mode, the Electrostatic compression is large than ±6kV.


◆ Operating Condition

ParameterSymbolMin.Max.Unit
Supply VoltageVCC4.524V
Operating Temp.Ta-40150
Output CurrentIO5mA


◆ Electrical Characteristc

ParamaterSymbolTest    ConditionTyp.MaxUnit
Output Low LevelVOLVCC1=4.5, VCC2=24V, IO=25mA,BBOP0.20.4V
Output High LevelVOHVCC1=4.5, VCC2=24V, IO=25mA,BBRP23.524V
Output Leakage currentIOHVCC2=24V,VCC1Open    circuit0.110μA
Supply CurrentICCVCC1=24V,Vo    Open Circuit3.58mA
Output Rise Edge TimetRVCC1=VCC2=12V,
     RL=1.2kΩ,    CL=20pF
125150ns
Output Fall Edge TimetF6080ns


◆ Magnetic Characteristic

Test Condition :VCC1 = VCC2 =24V,IO = 50mA

ParameterSymbolMin.Typ.Max.
Operate    PointBOP25
Release PointBRP3
Hysteresis
     ∣Operate point-Release point∣
BH
     ∣BOP-BRP∣
26

Note 1: Unit is mT, 1mT=10Gs.

Note 2: When the “S”Pole of the magnetic field is vertical to the front mark of product, we call the magnetic field B>0.



◆ Package Outline

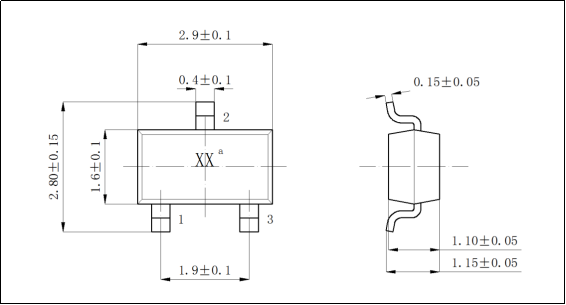

SOT23-3L(M type)Package figure(Unit: mm)

单极型霍尔传感器AH543

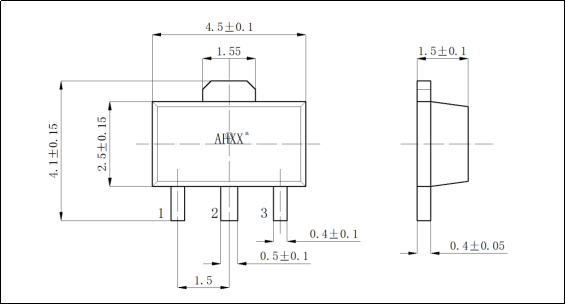

SOT89-3L(S type)Package figure(Unit: mm)

单极型霍尔传感器AH543

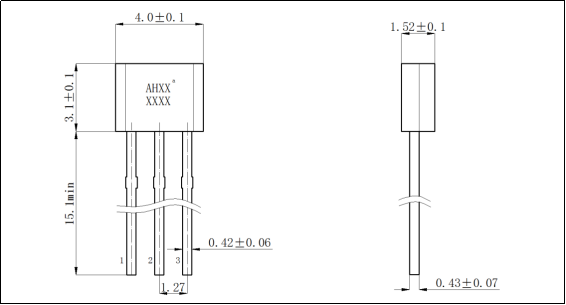

TO-92UA/TO-92S(UA type)Package figure(Unit: mm)

单极型霍尔传感器AH543

Note: In the above package outline figure, Pin 1: Vcc, Pin2: GND, Pin 3: Output terminal.


Mark

Mark “XX” or “AHXX” are abbreviation form of the parts No., the second line”XXXX”means.
