Bipolar Hall IC
Bipolar Hall IC

Note: the data are typical values, the test voltage of supply current is 5.5V, and the ambient temperature is 25 ℃.

Type Manufacturing Techniques Output State Package Supply Curent
(mA)
Load
(mA)
Operating Voltage
(V)
BOP
(mT)
BRP
(mT)
BH
(mT)
Operating Temperature
(℃)
AH3031R Bipolar Open collector SOT23/SOT89/TO92 4 25 4.5~24 2.5 -2.5 5.0 -40~150
AH3031 Bipolar 10k pull-up SOT23/SOT89/TO92 4 25 4.5~24 2.5 -2.5 5.0 -40~150
AH3041 Bipolar Open collector SOT23/SOT89/TO92 4 25 4.5~24 2.5 -4.5 9.0 -40~150
AH3041N Bipolar Open collector SOT23/SOT89/TO92 4 25 4.5~24 -4.5 4.5 9.0 -40~150
AH3051 Bipolar Open collector SOT23/SOT89/TO92 4 25 4.5~24 7.5 -7.5 15.0 -40~150
AH3075 Bipolar Open collector SOT23/SOT89/TO92 4 25 4.5~24 10.0 -10.0 20.0 -40~150


The bipolar Hall-effect sensor includes the following on a single silicon chip: reverse voltage protector, voltage regulator, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger and open collector output driver, etc. The integrated voltage regulator and temperature compensation circuit ensure that the sensor works stably in a wide voltage and temperature range. The reverse voltage protection circuit prevents the sensor from being damaged by reverse voltage.

Produced with bipolar technology, a bipolar Hall IC is more stable and reliable in some special application. It is available in three package types: SOT-23-3L (Type M), SOT-89 (Type S), and TO-92UA (Type UA). Each package is lead (Pb) free, with 100% matte tin plated leadframes.

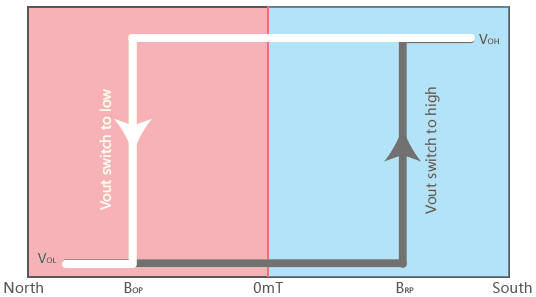

North Pole Active

When the N pole of the magnet faces the mark surface of the sensor and is close to it (|B|≥|BOP|), the sensor outputs a low level; when the S pole faces the mark surface and is close to it (|B|≥|BRP|), the sensor outputs a high level. When the magnet is far away from the sensor (B=0), the output status of the sensor is latched and remains unchanged. In order to change the output status, the applied magnetic field must be opposite polarity.

Note: the SOT-23-3L package is north pole active, and the SOT89 and TO92UA package are south pole active.
