Features and Benefits
High sensitivity digital output
Stable over the entire temperature range
Wide operating voltage range: 4.5V ~ 24V
Strong resistance to mechanical stress
Reverse power supply protection
Non-contact output, safety and reliable
TO-92, SOT-23-3L and SOT-89 package options
Developed according to the EU RoHS and EU REACH
The AH3131 is a high sensitivity digital unipolar Hall IC with single output.
The AH3131 Hall-effect sensor includes the following on a single silicon chip: reverse voltage protector, voltage regulator, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger and open-collector output driver, etc. The integrated voltage regulator and temperature compensation circuit ensure that the sensor works stably in a wide voltage and temperature range. The reverse voltage protection circuit prevents the sensor from being damaged by reverse voltage.

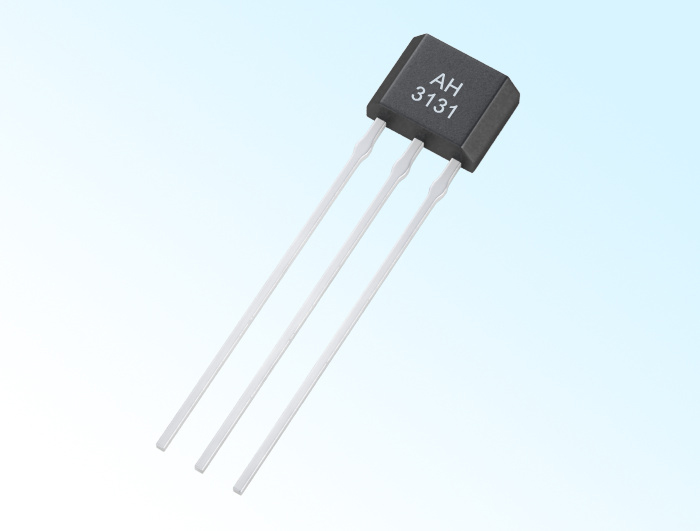

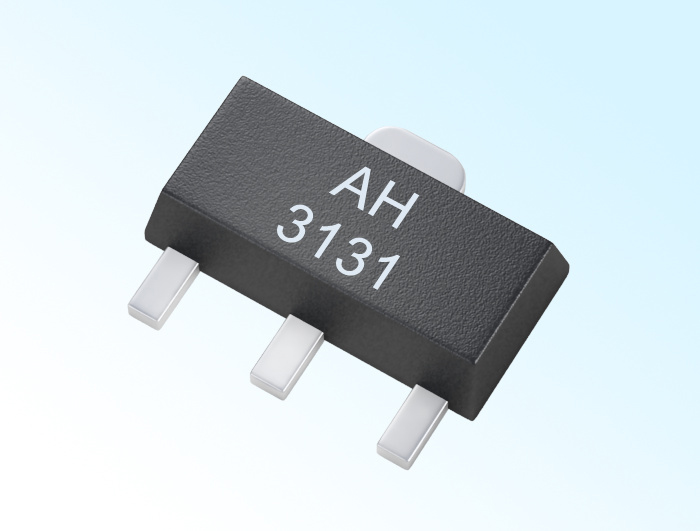

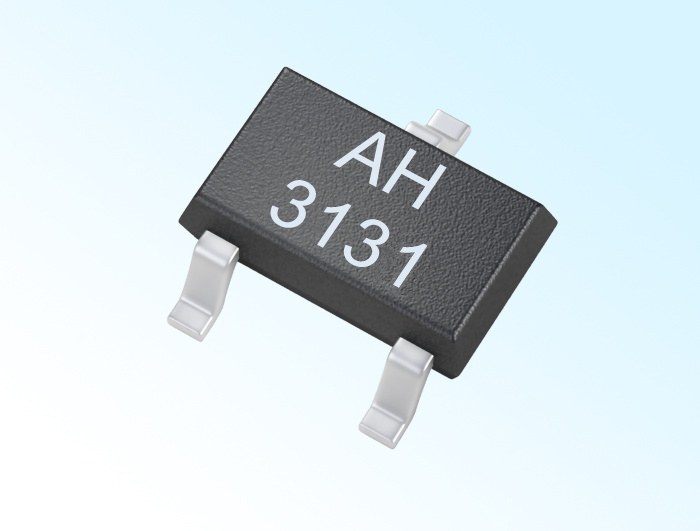

The AH3131, produced with bipolar technology, is more stable and reliable. It is available in three package types: SOT-23-3L (Type M), SOT-89 (Type S), and TO-92 (Type UA). Each package is lead (Pb) free, with 100% matte tin plated leadframes.
