Unipolar Hall IC
  • AH3134R
  • AH3134R
  • AH3134R


    Features and Benefits

    High sensitivity digital output

    Stable over the entire temperature range

    Wide operating voltage range: 4.5V ~ 24V

    Strong resistance to mechanical stress

    Reverse power supply protection

    Non-contact output, safety and reliable

    TO-92, SOT-23-3L and SOT-89 package options

    Developed according to the EU RoHS and EU REACH


General Description

The AH3134R is a digital unipolar Hall IC with single output.

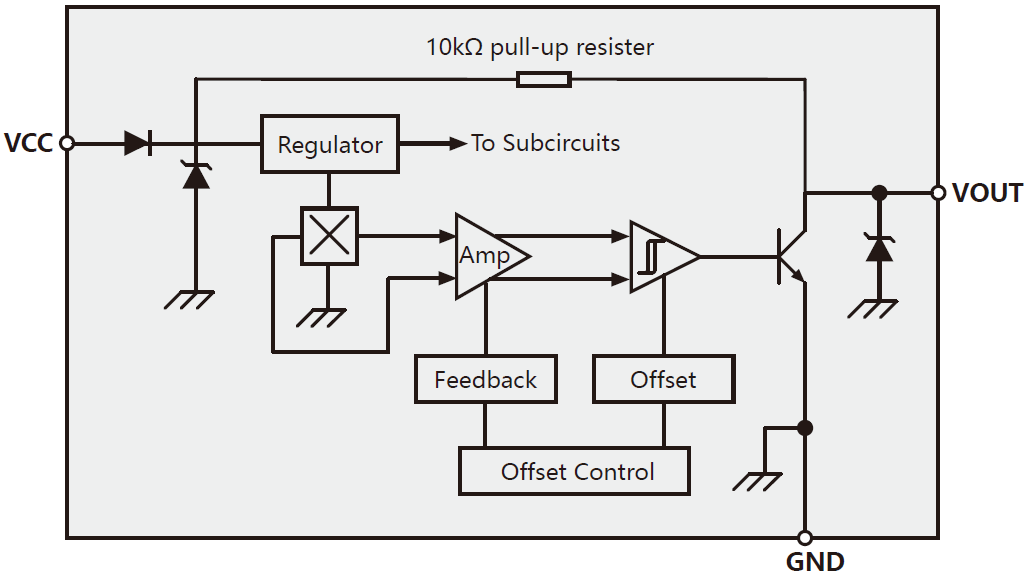

The AH3134R Hall-effect sensor includes the following on a single silicon chip: reverse voltage protector, voltage regulator, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger, opencollector output driver and built-in pull-up resistor, etc. The integrated voltage regulator and temperature compensation circuit ensure that the sensor works stably in a wide voltage and temperature range. The reverse voltage protection circuit prevents the sensor from being damaged by reverse voltage.

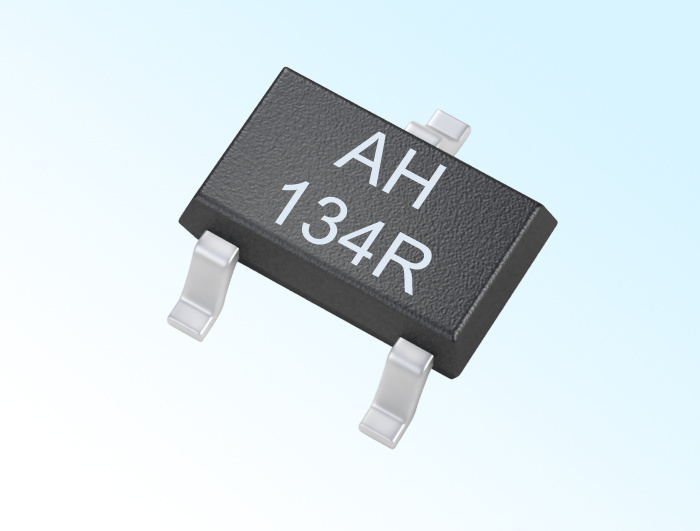

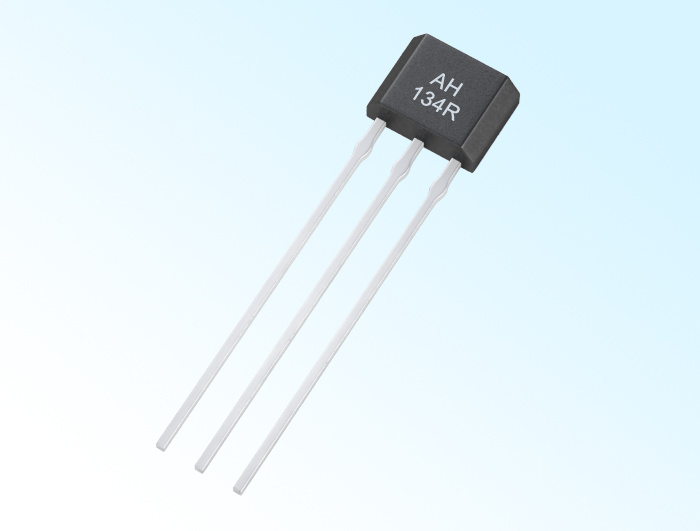

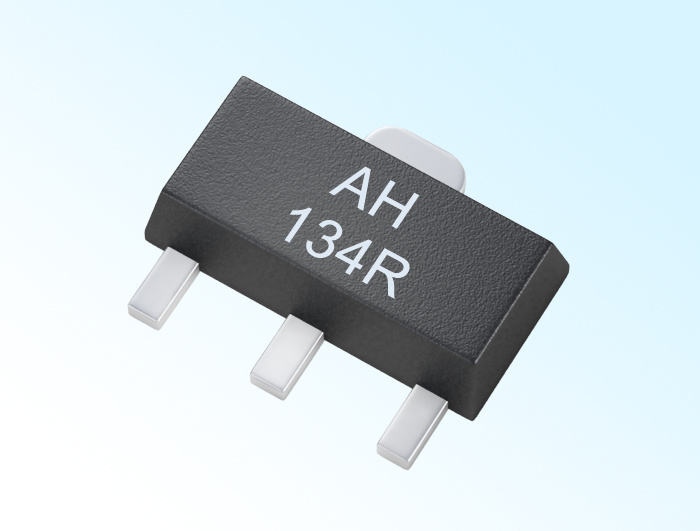

The AH3134R, produced with bipolar technology, is more stable and reliable. It is available in three package types: SOT-23-3L (Type M), SOT-89 (Type S), and TO-92 (Type UA). Each package is lead (Pb) free, with 100% matte tin plated leadframes.
