Omnipolar Hall IC
Omnipolar Hall IC

Note: the data are typical values, the test voltage of supply current is 3.3V, and the ambient temperature is 25 ℃.


TypeManufacturing Techniques Output State Package Supply Curent
(μA)
Load
(mA)
Operating Voltage
(V)
BOP
(mT)
BRP
(mT)
BH
(mT)
Operating Temperature
(℃)
AH3661 CMOS Open drain SOT23/TO92 2.8 1 2.5~5.5 ±4 ±2.7 1.3 -40~85
AH3662 CMOS 100k pull-up SOT23/TO92 6.0 1 2.5~5.5 ±2 ±1 1.0 -40~85
AH3663 CMOS Open drain SOT23/TO92 6.0 1 2.5~5.5 ±2 ±1 1.0 -40~85
AH3664 CMOS Push Pull SOT23/TO92 1.0 1 1.65~5.5 ±3 ±2 1.0 -40~85
TypeManufacturing Techniques Output State Package Supply Curent
(mA)
Load
(mA)
Operating Voltage
(V)
BOP
(mT)
BRP
(mT)
BH
(mT)
Operating Temperature
(℃)
AH3931 CMOS Open drain SOT23/TO92 1.5 5 2.5~22 ±3 ±1.5 ±1.5 -40~85


The omnipolar Hall-effect sensor includes the following on a single silicon chip: reverse voltage protector, voltage regulator, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger and open-drain output driver, etc.

Produced with CMOS technology, an omnipolar Hall IC is asked for lower supply voltage and less power supply. It is available in two package types: SOT-23-3L (Type M) and TO-92UA (Type UA). Each package is lead (Pb) free, with 100% matte tin plated leadframes.

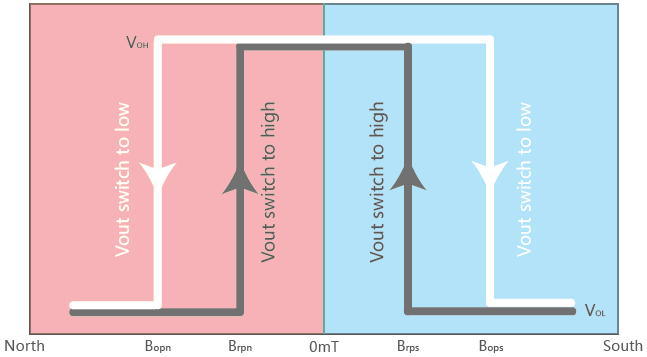

When the magnet (S or N pole) is close to the sensor (|B|≥|BOP|), the sensor outputs a low level; when the magnet is far away from sensor (|B|≤|BRP|), the sensor outputs a high level. Steady Hysteresis (BHX=|BOPX- BRPX|) ensures its stable switch status.
