Bipolar Hall IC

AH3031R

    ◆ Features

    High sensitivity

    Digital output, bipolar latch

    Stable over the entire temperature range

    Wide operating voltage range: 4.5V ~ 24V

    Strong resistance to mechanical stress

    Reverse power supply protection

    Non-contact output, safety and reliable

    TO-92, SOT-23-3L and SOT-89 package options

    Developed according to the EU RoHS and EU REACH

PRODUCTS DETAILS

◆ Outline

The AH3031R is a high sensitivity digital bipolar-latch Hall IC with single output. It has good temperature stability and latch function. The AH3031R includes the following on a single silicon chip: reverse voltage protector, voltage regulator, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger, open collector output driver, pull-up resistence, etc. The integrated voltage regulator and temperature compensation circuit ensure that the sensor works stably in a wide voltage and temperature range. The reverse voltage protection circuit prevents the sensor from being damaged by reverse voltage.

The AH3031R, produced with bipolar technology, is more stable and reliable in some special application. It is available in three package types: SOT-23-3L (Type M), SOT-89 (Type S), and TO-92 (Type UA). Each package is lead (Pb) free, with 100% matte tin plated leadframes.

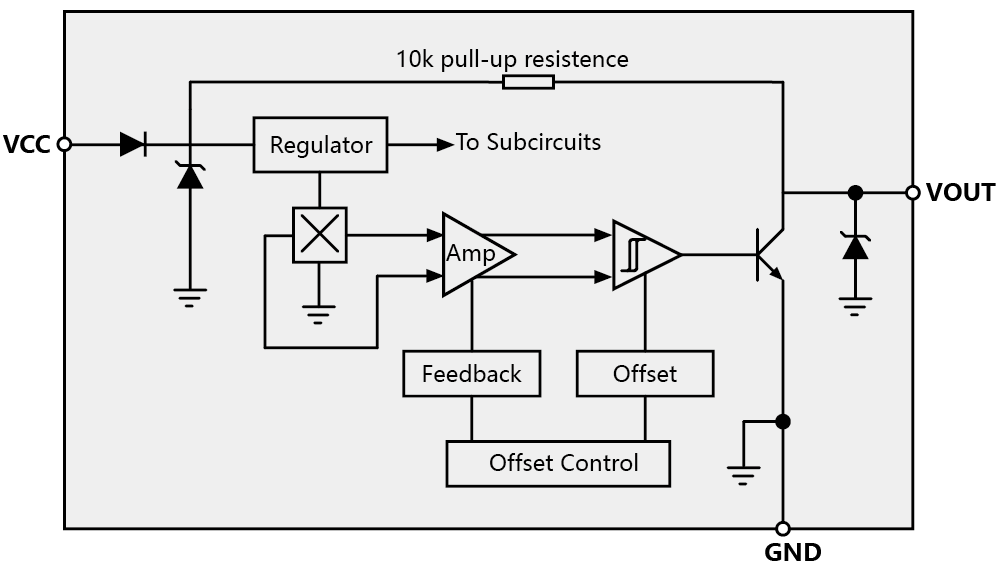

◆ Block Diagram
