Digital output, bipolar latch
Stable over the entire temperature range
Wide operating voltage range: 4.5V ~ 24V
Strong resistance to mechanical stress
Reverse power supply protection
Non-contact output, safety and reliable
TO-92, SOT-23-3L and SOT-89 package options
Developed according to the EU RoHS and EU REACH
THE AH3031 IS THE EQUIVALENT PARTS FOR AH512, AH513, AH3601 AND AH3602B.
The AH3031 is a high sensitivity digital bipolar-latch Hall IC with single output. It has good temperature stability and latch function. The AH3031 includes the following on a single silicon chip: reverse voltage protector, voltage regulator, temperature compensation circuit, Hall-voltage generator, signal amplifier, Schmitt trigger and open collector output driver, etc. The integrated voltage regulator and temperature compensation circuit ensure that the sensor works stably in a wide voltage and temperature range. The reverse voltage protection circuit prevents the sensor from being damaged by reverse voltage.

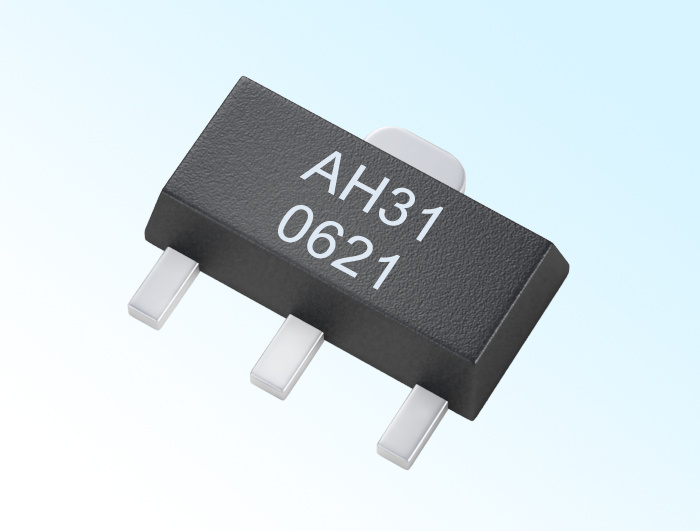

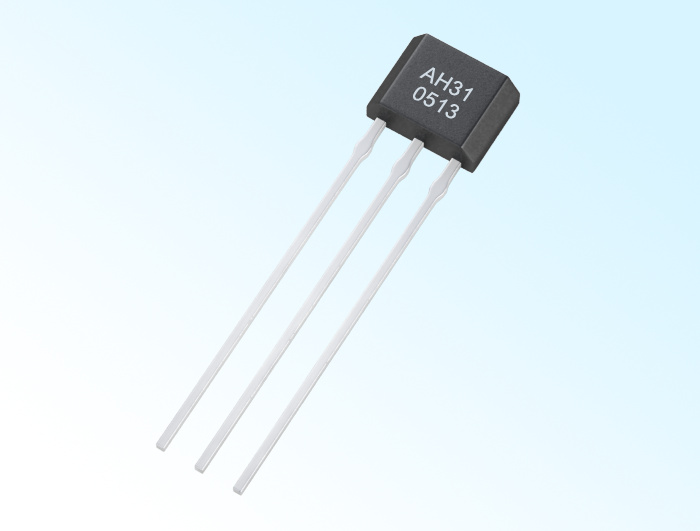

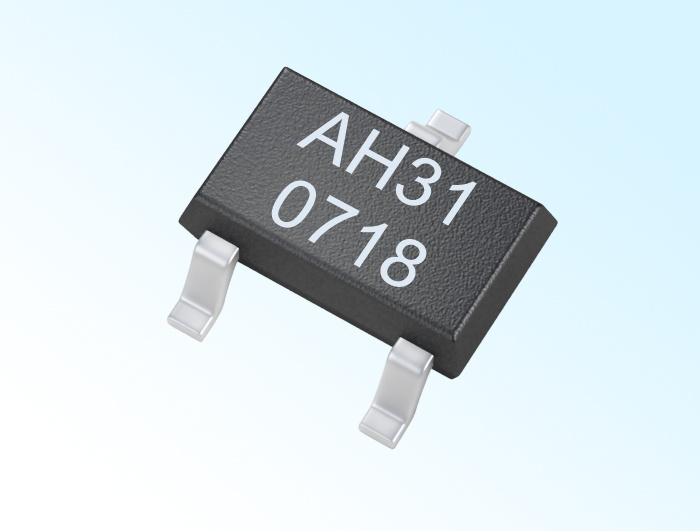

The AH3031, produced with bipolar technology, is more stable and reliable in some special application. It is available in three package types: SOT-23-3L (Type M), SOT-89 (Type S), and TO-92 (Type UA). Each package is lead (Pb) free, with 100% matte tin plated leadframes.
◆ Block Diagram
