Do you know the Guide to Hall Effect Sensors?

Jun. 12, 2020

As a Hall Sensor Suppliers, share with you. What is a Hall impact sensor?

These tools have a series of applications, with Hall impact sensing units often utilized in automotive systems to notice placement, distance and also rate. These creative tools are utilized in numerous fields, yet perhaps most especially in anti-lock braking systems (ABDOMINAL MUSCLE), and internal combustion engines to help with ignition timings.

This overview will go through whatever you require to understand about the Hall impact sensing unit, including the scientific research behind the tool, the applications for this sensor, and also exactly how to take Hall impact sensor measurements.

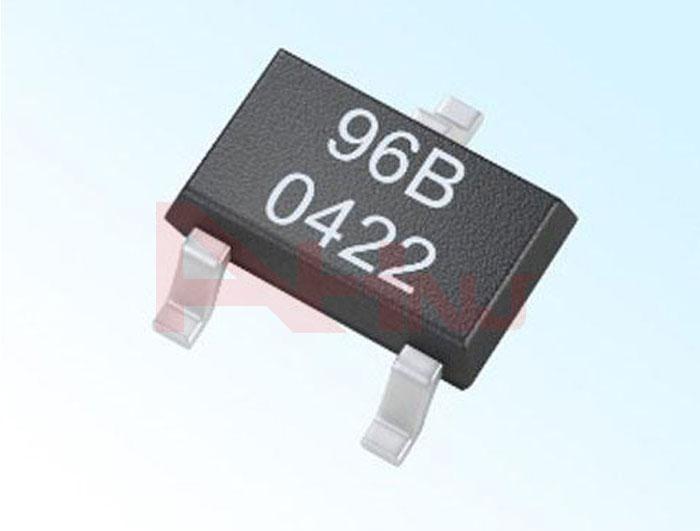

Linear Hall IC

Linear Hall IC

First however, it is very important to comprehend how this tool works.

Just how do Hall result sensing units work?

When an electric existing circulations with any type of material, the electrons within the current normally relocate a straight line, with the power developing its very own electromagnetic field as it bills.

If the electrically-charged product is placed between the poles of a long-term magnet, as opposed to moving in a straight line, the electrons will certainly instead deviate into a bent path as they move with the material. This happens since their very own magnetic field is responding to the different field of the permanent magnet.

As a result of this brand-new curved motion, even more electrons are then present at one side of the electrically-charged product. Via this, a potential difference (or voltage) will certainly after that appear across the product at appropriate angles to the magnetic field, from both the permanent magnet as well as the flow of the electric existing.

So, exactly how does a Hall effect sensor work?

Making use of semiconductors (such as silicon), Hall result sensing units function by measuring the changing voltage when the device is placed in a magnetic field. To put it simply, when a Hall effect sensing unit spots that it is currently in a magnetic field, it is able to pick up the position of objects.

Hall effect sensing units and also magnets

Magnets are intrinsic to Hall result sensing units, which are triggered by the presence of an exterior electromagnetic field. The device is then able to feeling as an object moves either more detailed or even more away, simply through the varying strengths of the electromagnetic field.

As an example, if a Hall impact sensing unit was positioned in a door frame and also a magnet on the door, the sensor would have the ability to spot when the door is open or shut via the existence of the magnetic field. The representation below shows how a Hall impact sensor identifies a magnet:

All magnetic fields have 2 vital qualities. Firstly, what is called a 'flux density', which refers to the amount of magnetic flow passing through a system area, and also second of all, all magnets feature two polarities (the North as well as South posts).

The result signal that appears from a Hall effect sensing unit represents the density of an electromagnetic field around the gadget. Hall result sensing units have a predetermined threshold, and when the magnetic flux density exceeds this limitation, the gadget is able to discover the electromagnetic field by producing an output called the 'Hall Voltage'.

Hall result sensors all have a thin piece of semiconductor product inside them, which passes a continual electrical current via itself to generate an electromagnetic field. When the device is placed near an exterior magnet, the magnetic change exerts a force on the semiconductor material, as the diagram below shows:

This force triggers a motion of electrons, developing a quantifiable Hall voltage as well as turning on the Hall impact sensing unit.

The result Hall voltage from the Hall effect sensing unit is directly proportional to the toughness of the electromagnetic field travelling through the semiconductor product. Typically, this outcome voltage is fairly little - equal to just a few microvolts - with numerous Hall result tools consisting of built-in DC amplifiers, alongside logic-switching circuits as well as voltage regulators, which are there to aid improve the sensitivity (as well as consequently efficiency) of the device. Our company also has Linear Hall IC for sale ,welcome to consult us.
