How to Distinguish Between Hall Sensor and Wiegand Sensor?

Jul 21, 2020

Everyone recognizes that Hall sensors and also Wiegand Sensors are commonly made use of. However do you recognize the difference between them? As a Wiegand Sensor Supplier, let me inform you.

Hall effect sensors are made use of for distance noticing, placing, speed discovery, and current picking up applications.

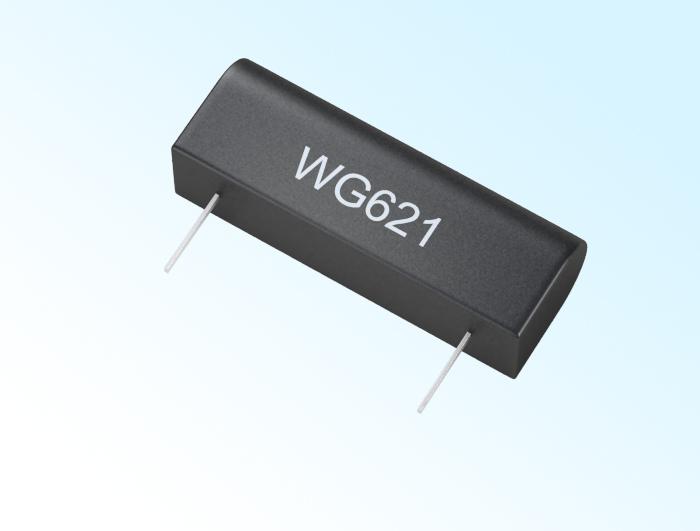

Wiegand Sensors

Wiegand Sensors

Often, a Hall sensor is integrated with threshold discovery to ensure that it works as and also is called a switch. Commonly seen in industrial applications such as the pictured pneumatic cyndrical tube, they are additionally used in customer equipment; as an example some computer system printers utilize them to find missing out on paper as well as open covers. They can likewise be utilized in computer system keyboards, an application that calls for ultra-high integrity. Another use a Hall Sensor remains in the development of MIDI body organ pedal-boards, where the motion of a 'vital' on the pedal-board is converted as an on/off switch via Hall Sensors.

Hall sensors are typically made use of to time the rate of wheels as well as shafts, such as for internal combustion engine ignition timing, tachometers and also anti-lock stopping systems. They are utilized in brushless DC electrical motors to detect the setting of the irreversible magnet. In the pictured wheel with 2 similarly spaced magnets, the voltage from the sensor will come to a head two times for each transformation. This setup is typically made use of to regulate the speed of disk drives.

Signal handling and also interface Hall Effect Sensors are linear transducers. Therefore, such sensors call for a straight circuit for handling of the sensor's outcome signal. Such a straight circuit:

Offers a consistent driving existing to the sensors

Magnifies the result signal

In some cases, the linear circuit may cancel the offset voltage of Hall effect sensors. In addition, AC inflection of the driving current might also lower the influence of this countered voltage.

Hall Effect Sensors with direct transducers are frequently incorporated with digital electronics. This makes it possible for advanced adjustments to the sensor's features and digital interfacing to microprocessor systems. In some services of IC Hall effect sensors a DSP is made use of, which provides for more selections among processing strategies. The Hall effect sensor user interfaces may consist of input diagnostics, mistake security for transient problems, and also short/open circuit detection. It might likewise provide as well as keep an eye on the existing to the Hall effect sensor itself. There are precision IC products available to deal with these attributes.

Wiegand sensors are magnetic sensors that do not require any exterior voltage or current, as well as utilize the Wiegand effect to generate a constant pulse each time magnetic field polarity turns around. Wiegand sensors are made by wrapping a coil around a Vicalloy cord core, which, due to the hysteresis inherent in the Wiegand effect, generates a pulse in the coil each time the magnetic polarity of the Vicalloy cable core turns around. They can be used in a series of magnetic picking up applications and also have the extra advantage that the power of each pulse can be harvested.

The uniformity of the pulses created by Wiegand Sensors can also be utilized to provide energy for ultra-low power electronic devices to be run utilizing a single pulse. Additionally, successive pulses can be kept to balance out energy demand of low-power power circuits. Alternatively, the pulses can be made use of to set off, or 'wake-up', intermittently powered electronic circuits.

In particular applications, both features of the pulses are exploited. The pulse energy is utilized to power ultra-low power wiring or ICs which, in turn, use the timing of the pulses to do computation jobs.
