Encoder
Encoder-D
  • Encoder-D
Encoder-D

Encoder-D

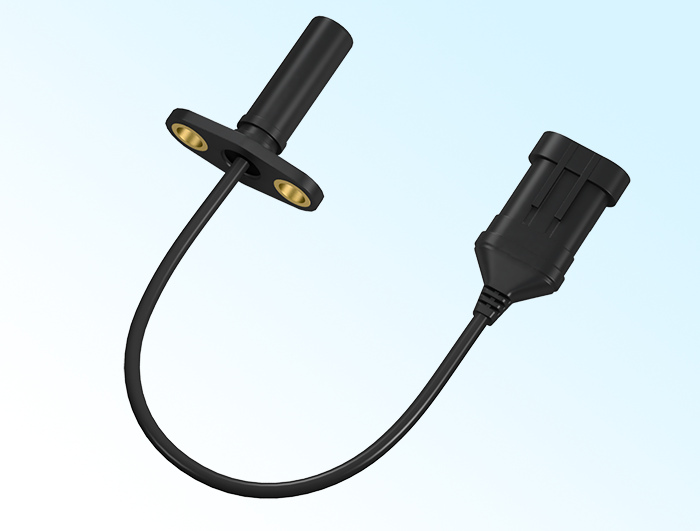

    AH-ES series incremental encoder is an encoder that specialized used in A.C.asynchronous motor.

    With built-in high performance magnetthe product can detect both the movement speed and direction of the target gear at the same time.

    The airtight packaging of the product can effectively avoid electromagnetic interference and moisture intrusion.

    The product has a good signal-to-noise ratio and excellent low-speed performance.

PRODUCTS DETAILS

The encoder is designed for sensing the changes of the magnetic fieldWhen the applied external magnetic flux density varies and reaches a certain valuethe output level changes. The  preset  magnetic  field  plus  target  gear  can  form  a  magnetic  field  which  varies periodically on the chip inside the Hall ICIn shortwhen the top of the gear directly faces to the encoderthe output is high levelWhen the bottom of the gear directly faces to the encoderthe  output  is  low  level.  The  distance between  the  two  Hall  chips  is precisely measured to ensure the phase difference between the two output is around 90°.
